Last Updated: August 2024
Intended Audience: Schools Ops
Context: Below are instructions on how to order and setup the Ponder Paper cutter and guide. This equipment cuts off the corners of a packet so that all staples are removed in one step. Please note, stapled packets cannot go into the scanner or else the scanner will malfunction (see troubleshooting article if this occurs).
Please contact support@ponder.co if you have any setup issues.
Video showing the instructions below is found here.
Cutter ordering
1. For schoolyear 24-25, Ponder Paper users will be utilizing the v2 paper cutter:
Name: VEVOR Industrial Paper Cutter A4 Heavy Duty Paper Cutter 12 Inch Paper Cutter Heavy Duty 400 Sheets Paper Guillotine with Clear Cutting Guide Grids for Offices, Schools, Businesses and Printing Shops
Color: white
Cutting Size: 201 mm
Order the Vevor paper cutter here.
There is also an option on Amazon.
2. If not already available, order a screw driver. We recommend this one from Amazon.
Archival note: For schoolyear 23-24, Ponder Paper users utilized the v1 paper cutter: Vevor Guillotine Paper Cutter 12". They ordered the Vevor paper cutter here. There was also an option on Amazon.
Guide ordering:

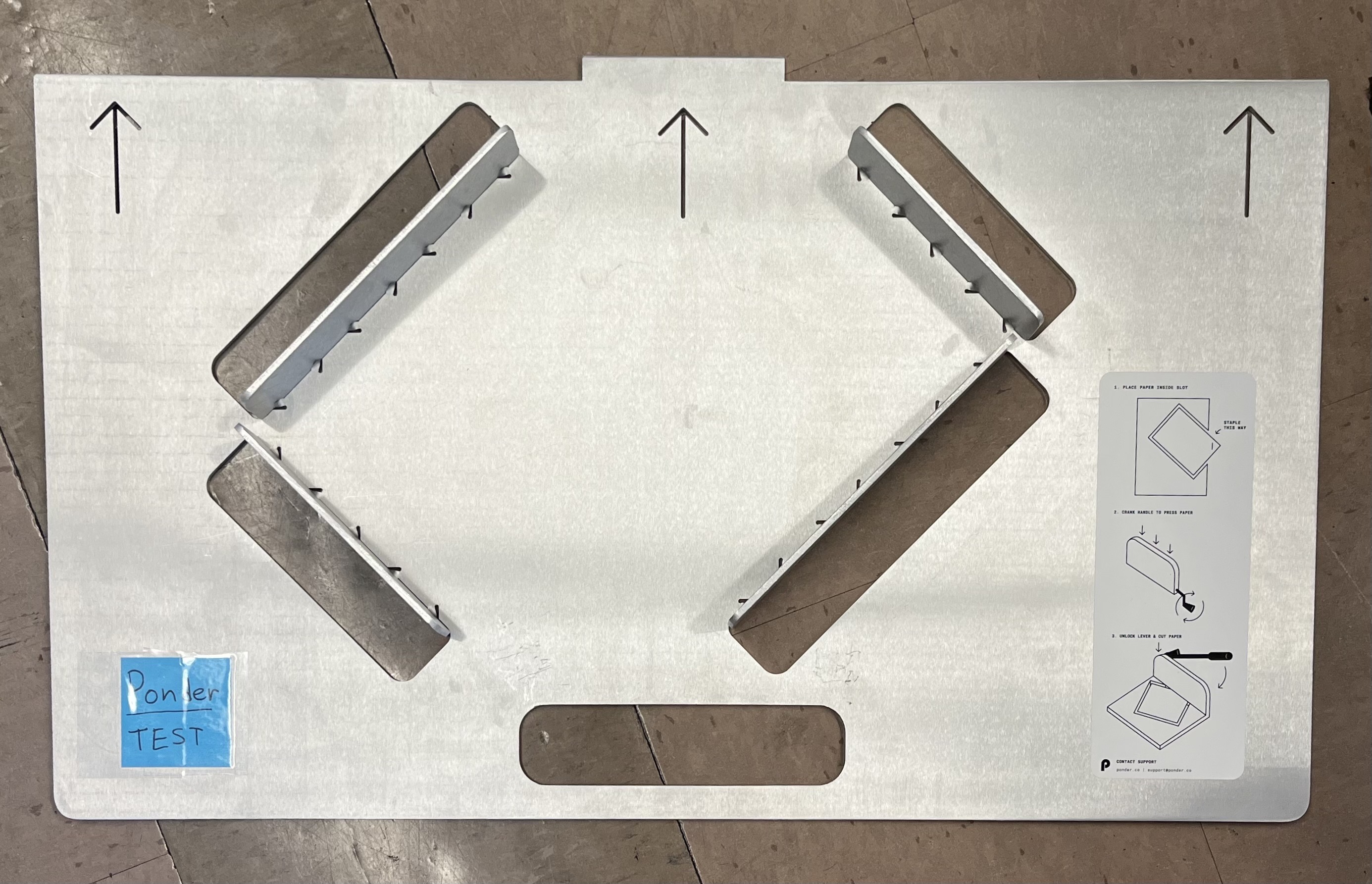

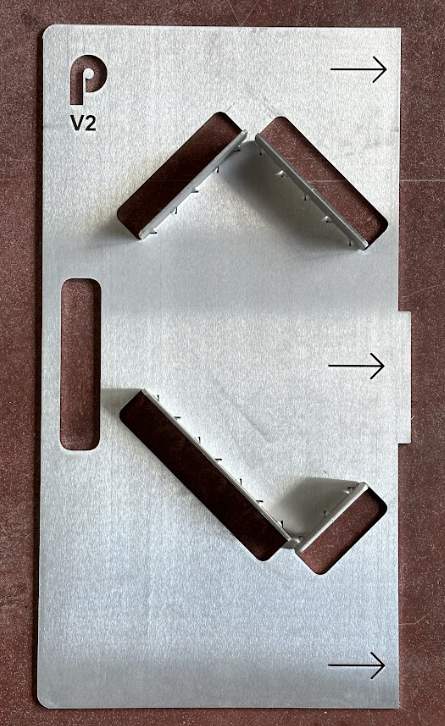

1. For schoolyear 24-25, if you purchased a new v2 paper cutter mentioned above, please contact your IT Support team to order a corresponding v2 guide (see image below):
Archival note: For schoolyear 23-24, Ponder Paper provided v1 guides (see image below) to schools for use with the v1 paper cutter. One for use and the second as a spare:
Cutter setup
1. Important notes: After setup, safely store the box and all packaging

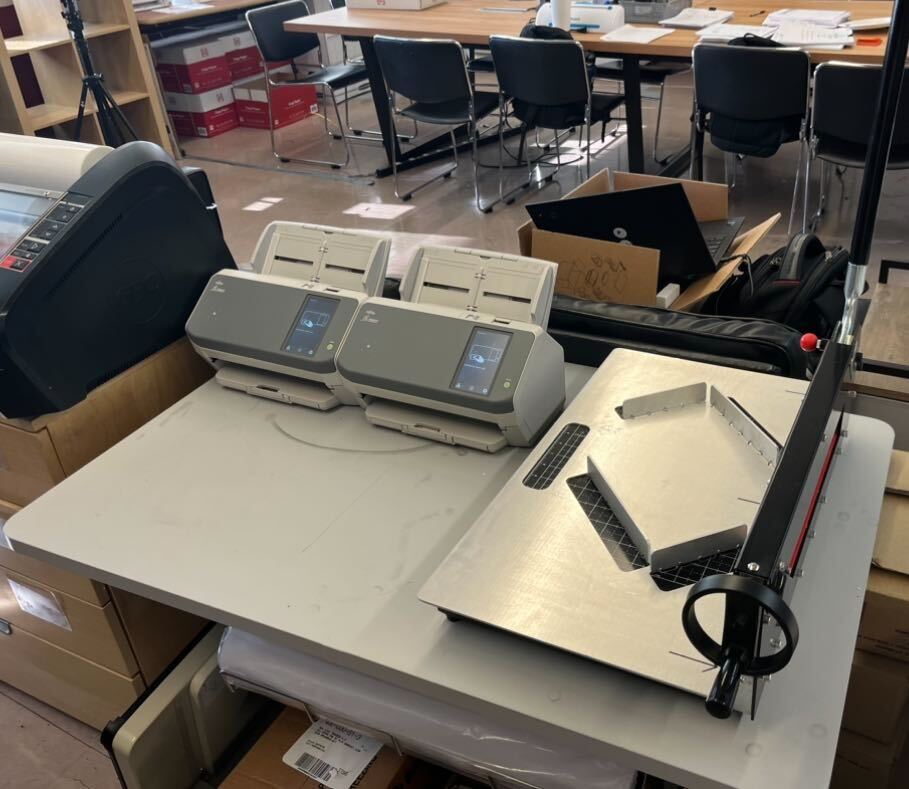

2. Cutter location: find a flat surface that is close to the Ponder Paper scanner, for example:
3. Items you will need to setup your new scanner:
- A flat surface for your cutter that is close to the scanner(s) - see example photo below
- 1 - scissor to cut open the box
- 1 - screwdriver
- 1 - Ponder provided metal cutter guide
- A stack of paper (approximately 40 pages) you can use to test the cutter
4. Open the box.
5. Take out the instruction manual. Store this in a safe location.

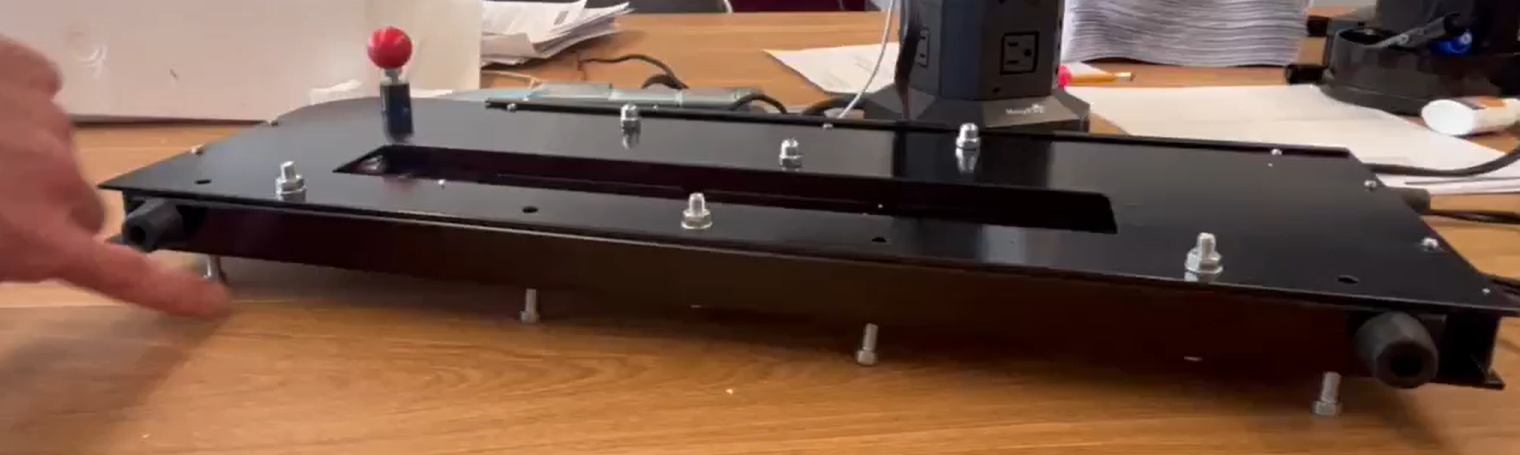

6. Locate the cutting bar and place it on it's side (red lock ball facing up, see photo below). Locate the bag with screws and place 4 screws underneath each hole:

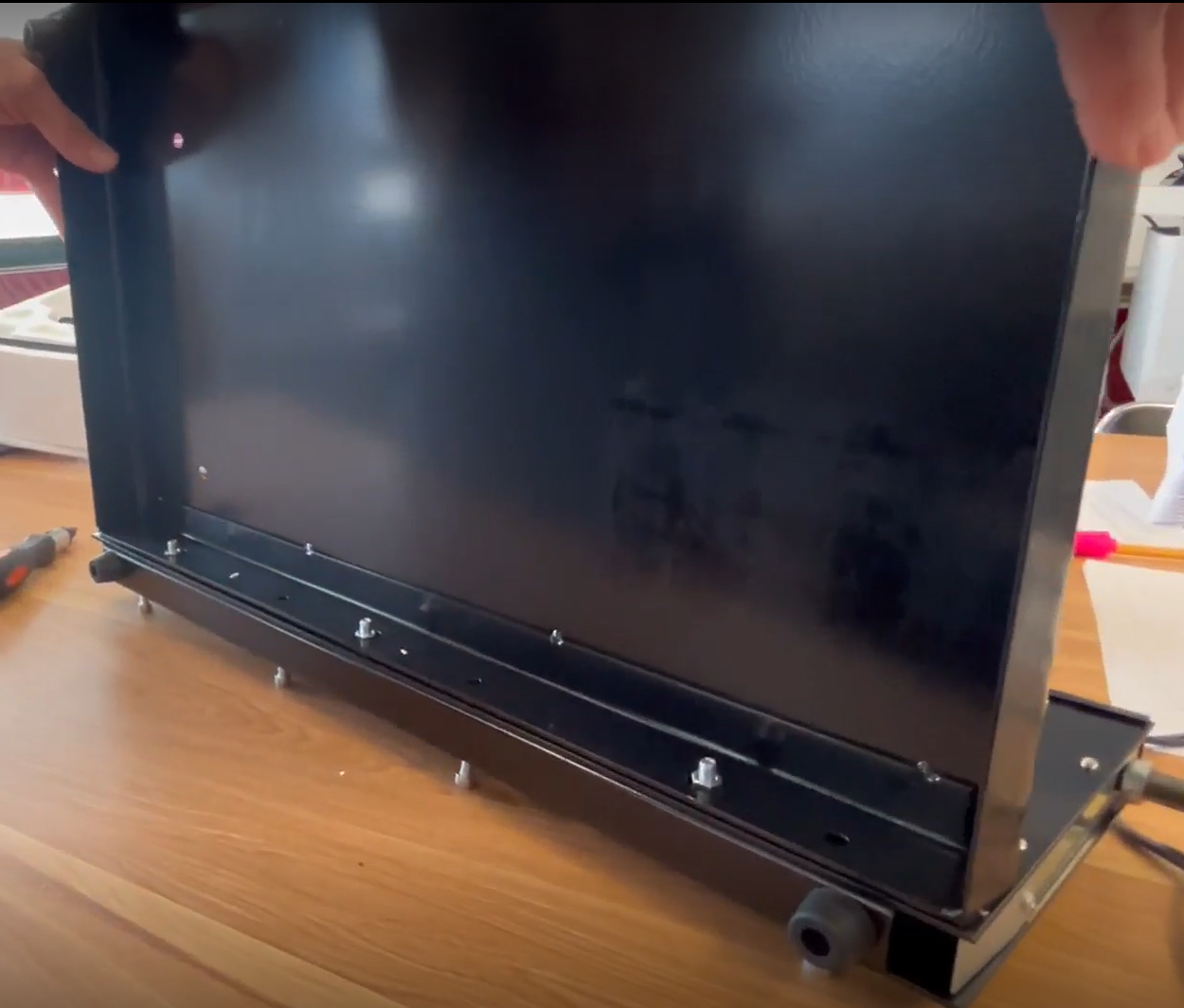

7. Locate the cutting base and align it over the 4 holes in the cutting bar, see photos below:
8. Locate the bag with screws and take out 4 washers and 4 bolts.

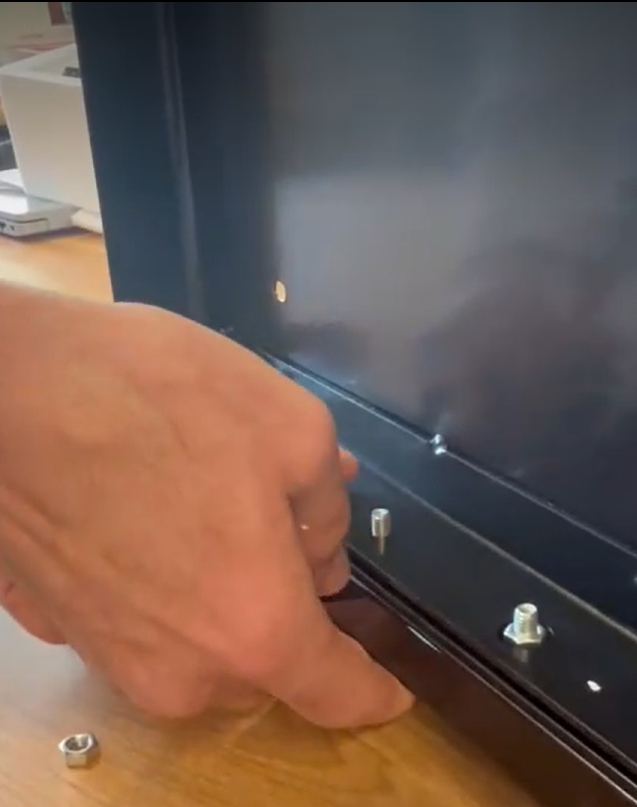

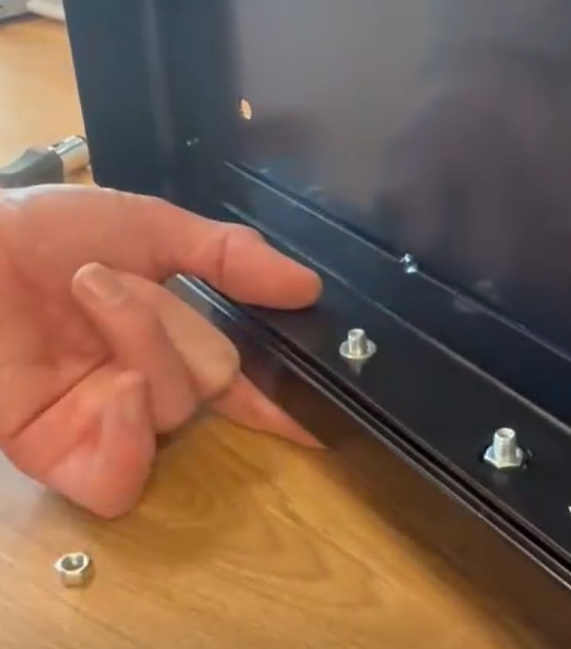

9. Use one hand to hold the screw up through the hole:
10. Place a washer
11. Place a bolt on top
12. For now, tighten it until it is sturdy but not entirely firm.
13. Repeat for the other 3 screws.

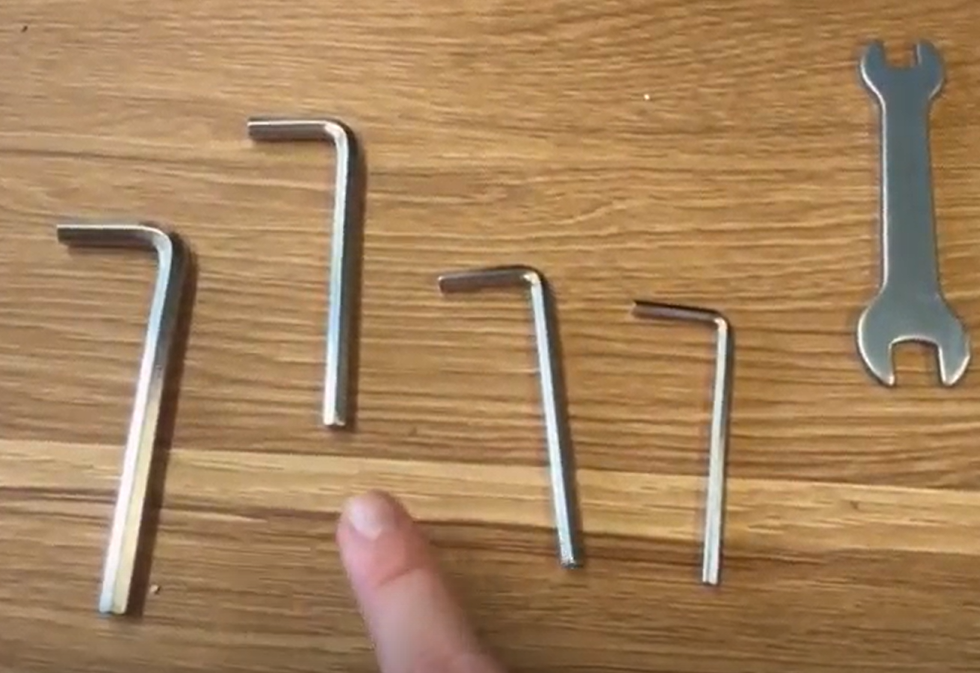

14. Locate the little bag of tools. Take out the wrench and the middle sized hex key (see photo):

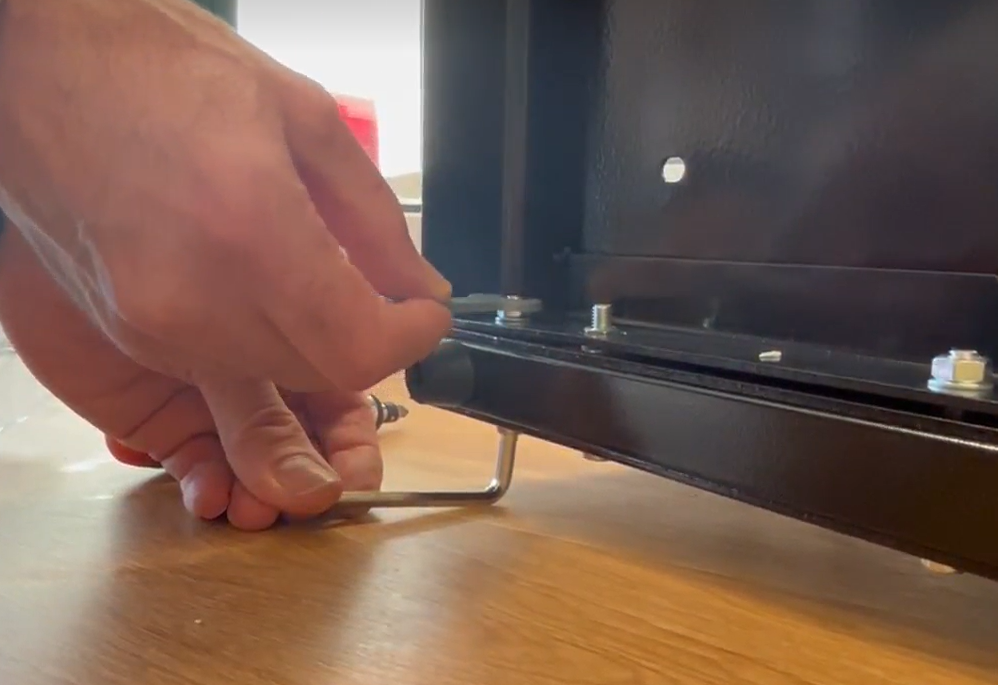

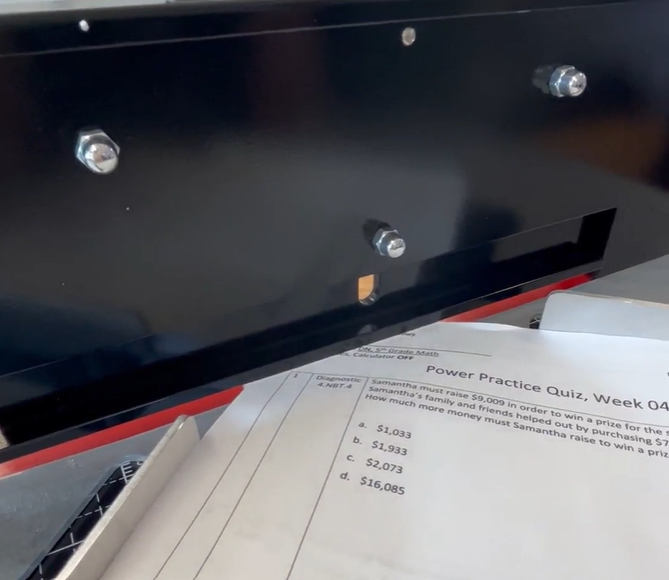

15. Place the hex key underneath the screw to hold the screw steady. Then use the wrench to tighten the bolt (see photo). Repeat to tighten all 4 bolts.

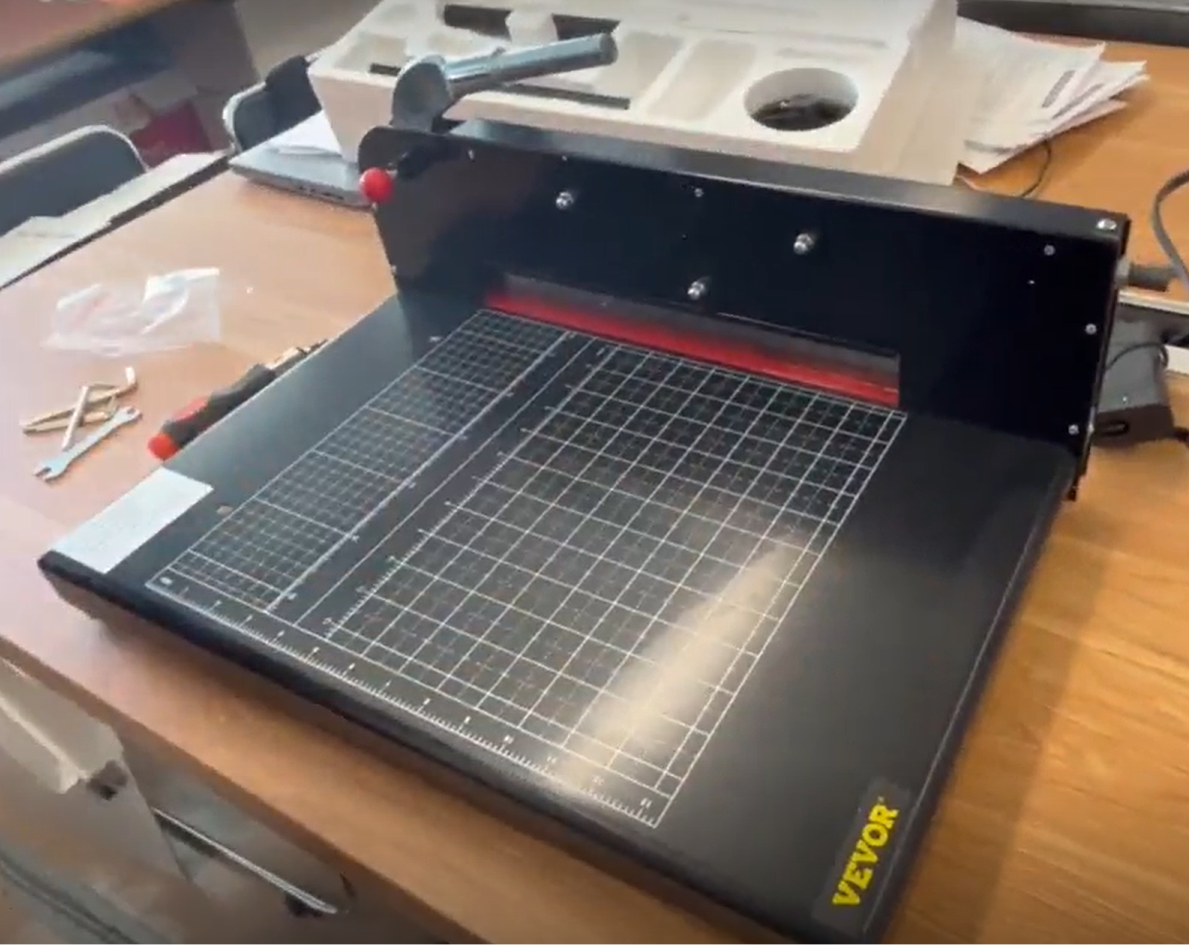

16. Lay the cutter right side up:

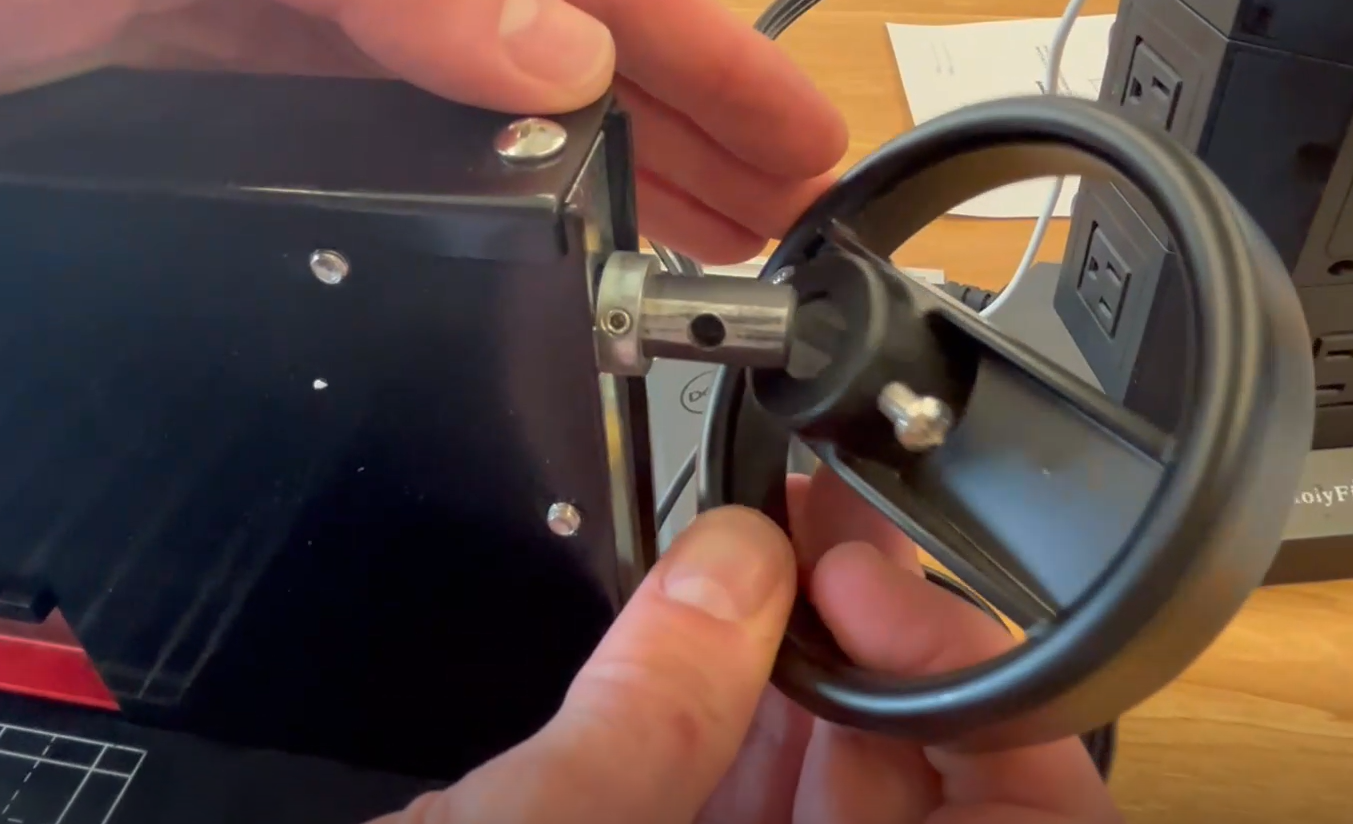

17. Locate the cutter wheel. Slightly unscrew the wheel screw. Align the screw in the wheel with the hole in the wheel handle, see photo below:

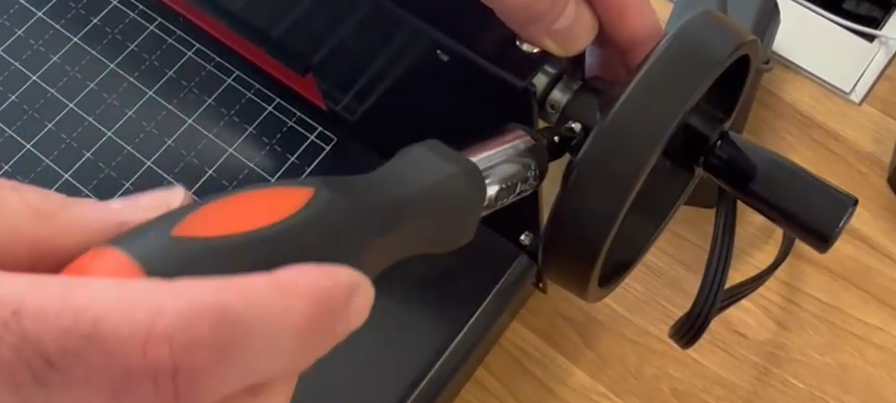

18. Use a screw driver to attach the wheel, see photo below:

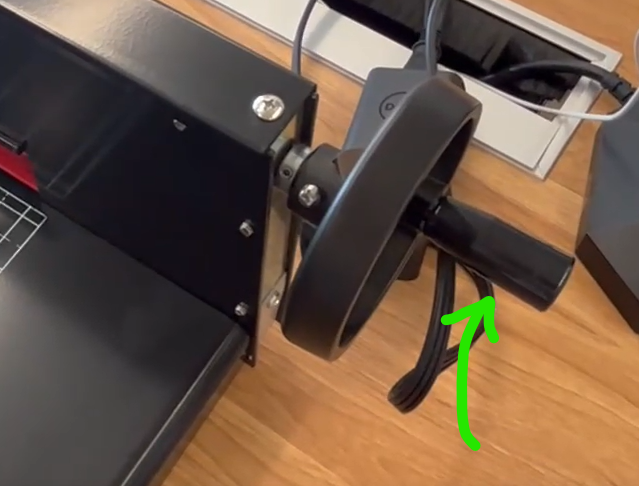

19. Pull out the handle from inside the wheel, see photo below:

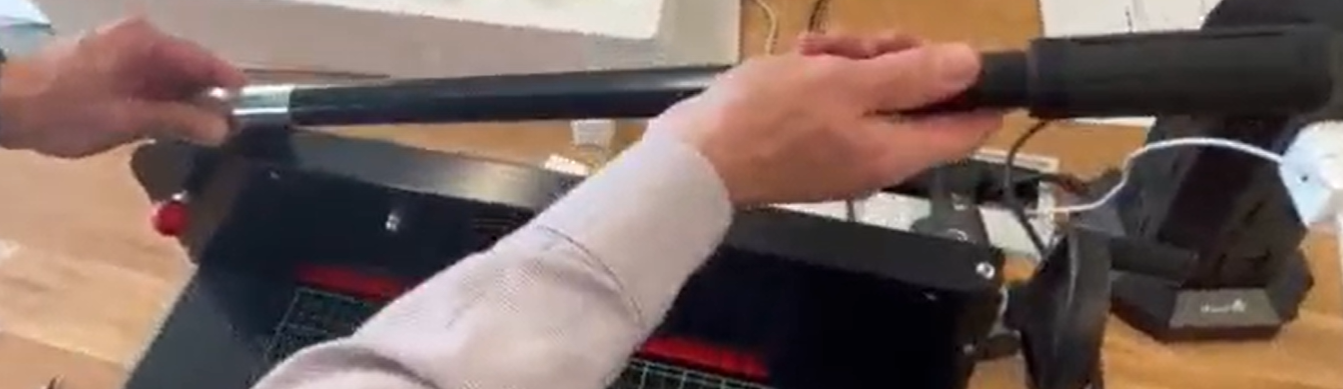

20. Locate the cutting handle and place it into the cutting bar head, see photo below:

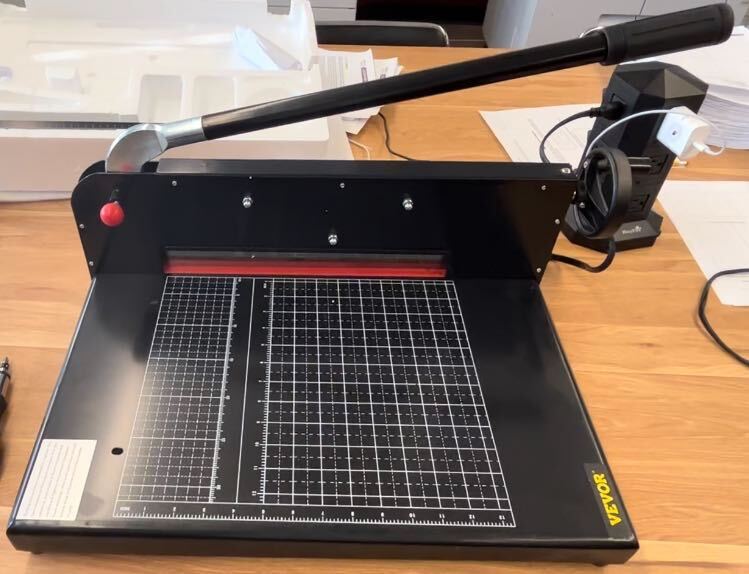

21. Your cutter is now setup:
Guide setup
1. Locate your metal Ponder cutter guide:

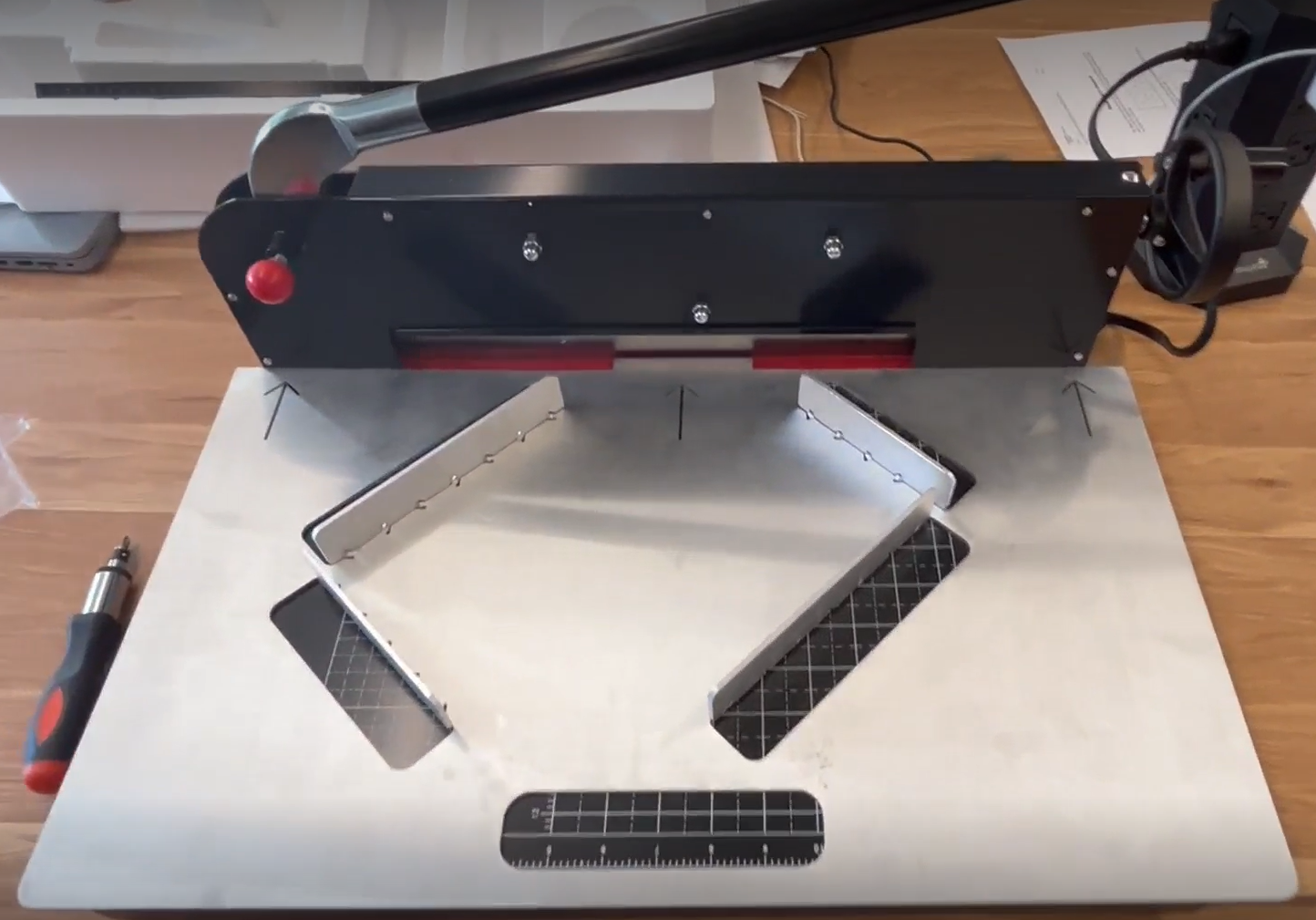

2. Slide the guide on top of your cutter so that the arrows point towards the blade, see photo below:
3. The guide is intended to slide to different parts of the blade for cleaner cuts as the blade ages.
Testing the cutter:
1. Unwind the wheel to raise the clamp all the way up.
2. Place a stack of paper in the guide.
3. Slide the guide to be flush against the blade:

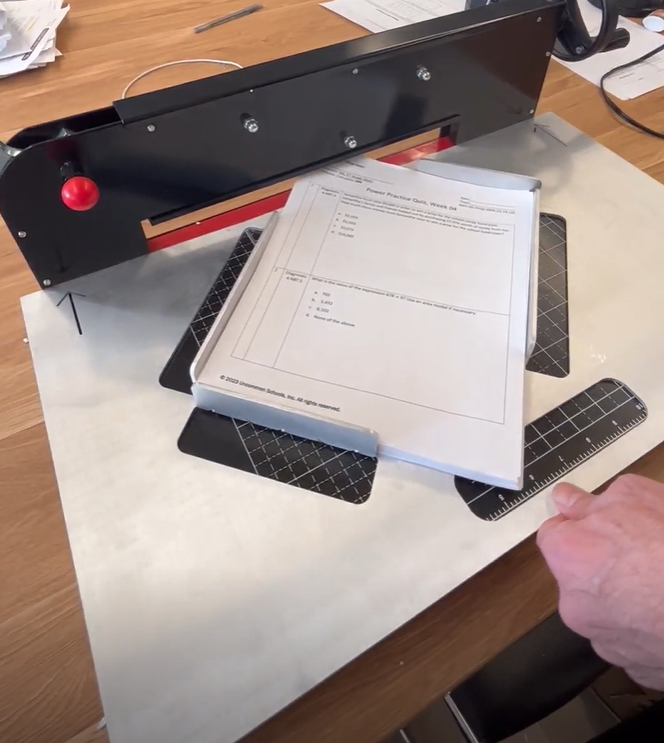

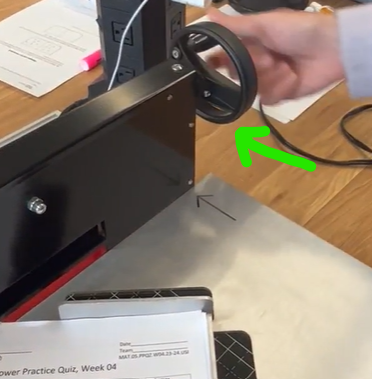

4. Turn the wheel so that the clamp drops and is firmly holding your stack in place:
5. With one hand, pull the red ball to unlock the blade.

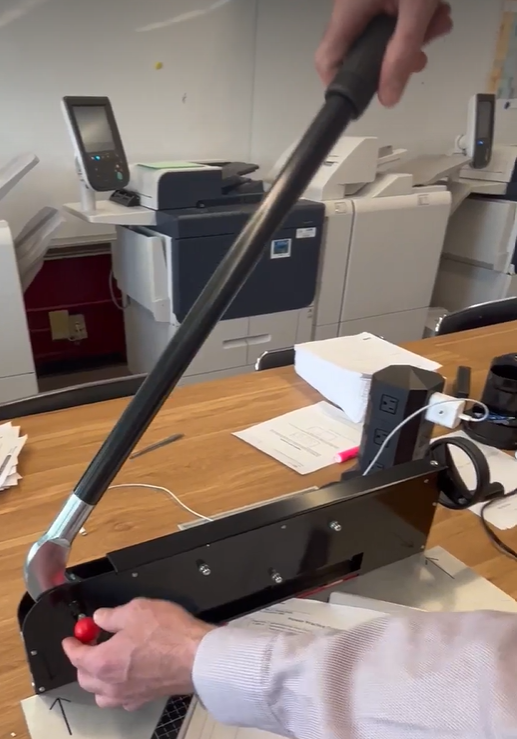

6. With your other hand, grab the cutter handle and bring down the blade in one quick movement:
7. Important: Raise the cutter handle back up, let go of the red lock ball and ensure the blade is locked upright.
8. Turn the wheel to unwind the clamp:

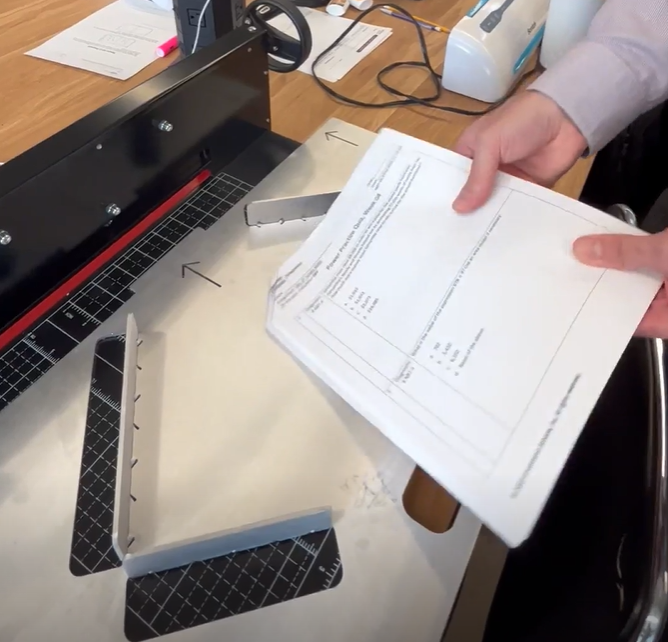

9. Remove your now cut corner papers from the guide:
10. Examine the corners to ensure all staples were cut off.
11. Repeat as needed.
